SIP Video Conferencing: How It Works, Equipment and Platforms

SIP video conferencing uses the Session Initiation Protocol to establish and manage video communication sessions between standards-based endpoints, conference rooms, telephony systems and conferencing platforms.

SIP itself normally does not carry the video media. It handles call setup and session control, while audio and video are transported separately through media protocols such as RTP or SRTP.

For many organizations, the main reason to use SIP today is interoperability. Existing room systems, PBXs and video endpoints often need to work with newer cloud or self-hosted conferencing platforms without being replaced.

The key question is not simply whether a platform “supports SIP.” It is whether SIP is handled natively by the conferencing system or through a separate connector, gateway or interoperability service.

SIP, or Session Initiation Protocol, is a signaling protocol used to create, modify and terminate multimedia communication sessions.

In SIP video conferencing, SIP is responsible for functions such as:

• identifying the destination;

• starting the call;

• negotiating session parameters;

• changing the session;

• ending the call.

The actual media normally travels separately.

A typical SIP video call starts when one endpoint sends a SIP request to another endpoint, server or conference address. The systems negotiate which audio and video formats they can use, after which the media session begins.

SIP compatibility does not guarantee full video interoperability. Two systems may establish a SIP session but still differ in supported codecs, content sharing, encryption, camera control or other conferencing features.

This is why a product can claim SIP support without being interoperable with every SIP-based room or conferencing system in the same way.

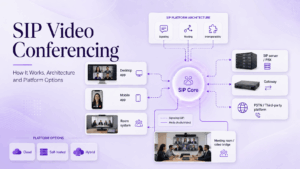

A SIP video-conferencing environment usually contains three main parts: endpoints, signaling infrastructure and a conferencing or interoperability layer.

A SIP endpoint may be a conference-room system, video phone, software client, MCU, PBX-connected device or another conferencing server.

The signaling layer determines where the call should go and how the session should be established. Depending on the architecture, it may include a SIP registrar, proxy or conferencing server.

A registrar can associate a SIP identity with the current network location of an endpoint, while a proxy can route signaling toward the correct destination.

Once the call is established, the conferencing or interoperability layer may need to host a multipoint meeting, process media, bridge different endpoint types or connect a standards-based room to another meeting environment.

Some platforms handle this SIP signaling directly inside the conferencing system. Others use an external gateway or interoperability provider.

SIP remains common in enterprise video environments because many organizations already own standards-based equipment.

Typical SIP-capable equipment includes:

• Cisco and Poly conference-room systems;

• standards-based video codecs;

• video phones;

• SIP-enabled desktop or software clients;

• PBXs;

• telephony gateways;

• MCUs;

• enterprise conferencing servers.

A room system may dial another SIP endpoint directly, register with an enterprise conferencing server, or connect through a gateway to a cloud meeting platform.

This is one reason SIP remains relevant even as browser-based and proprietary meeting platforms have become more common.

Replacing functioning room infrastructure can be expensive.

Organizations may already have cameras, room codecs, microphones, displays, control panels and standards-based room systems that remain suitable for daily use.

SIP interoperability can allow these systems to continue participating in modern meetings instead of requiring immediate replacement.

SIP is also widely used in business IP telephony.

A conferencing system with appropriate SIP integration can connect video communication with PBX subscribers, VoIP phones, SIP trunks, telephony gateways and conference rooms.

This makes SIP especially useful when video conferencing is part of a broader enterprise communications environment rather than a standalone meeting application.

Enterprise communication infrastructure rarely changes all at once.

An organization may temporarily operate older H.323 rooms, newer SIP rooms, browser participants, vendor-native applications and cloud meetings at the same time.

SIP interoperability helps these systems coexist while the organization moves from one architecture to another.

SIP, H.323 and WebRTC can all appear in the same enterprise conferencing environment, but they serve different roles.

Enterprises may use all three at once: SIP for standards-based signaling, H.323 for installed room systems and WebRTC for browser participants.

The conferencing or interoperability layer determines how those endpoints meet and which features remain available across the connection.

The phrase SIP support can describe very different architectures.

The most important distinction is whether the conferencing platform handles SIP directly or relies on another system to translate the SIP call into the meeting environment.

Neither model is automatically better.

A connector is often practical when an organization already uses a cloud meeting platform and only needs to preserve existing room systems.

Native SIP becomes more important when SIP endpoints, PBXs, room systems and conferencing servers are part of the organization’s own communication environment.

These platforms use SIP in different ways.

Zoom primarily treats SIP and H.323 as a way to connect existing room systems to Zoom meetings through its Room Connector.

Microsoft Teams uses Cloud Video Interop, where a supported third-party provider connects standards-based rooms to the Teams meeting environment.

Webex supports standards-based SIP and H.323 systems joining meetings, while Pexip focuses heavily on interoperability between enterprise video environments.

TrueConf represents a different model because SIP and H.323 capabilities are integrated into a customer-operated conferencing platform rather than added only as a cloud room connector.

An organization already owns standards-based conference rooms and wants a customer-operated conferencing environment.

In this case, compatible room systems can connect directly to a platform that natively supports SIP or H.323.

This reduces the need for a separate interoperability provider and makes sense when SIP is part of the organization’s wider communications architecture.

An organization may already use Zoom, Microsoft Teams, Webex or another cloud meeting platform while continuing to operate standards-based room systems.

A room connector or interoperability service allows those systems to join cloud meetings without immediate hardware replacement.

This approach is often simpler when SIP is required mainly for room compatibility rather than as part of the organization’s own call-control environment.

A larger enterprise may need to support SIP rooms, H.323 systems, browser users, desktop and mobile clients and PBX subscribers at the same time.

In this case, the conferencing architecture must determine which system owns signaling, how media is routed and which capabilities remain available when different endpoint types communicate.

Start with the infrastructure the organization already has.

List the room systems, codecs, PBXs and other standards-based endpoints that need to remain operational.

Determine whether SIP should be handled directly by the conferencing platform or by an external interoperability provider.

This decision separates native SIP deployments from connector-based architectures.

Confirm that the required audio and video codecs are supported on both sides of the connection.

Then verify whether the necessary conferencing functions remain available, including:

• audio;

• video;

• presentation sharing;

• encryption;

• camera control;

• dial-in and dial-out behavior.

A successful SIP connection does not automatically mean that every media or collaboration feature will interoperate.

Consider whether the conferencing core should run in a public cloud, private infrastructure, on-premises or across a hybrid environment.

This affects routing, administration, external dependencies and infrastructure ownership.

A connector-based architecture may introduce provider licensing, another administrative system, an additional point of failure or an extra security boundary.

Native SIP also has operational costs because the organization must manage the conferencing infrastructure itself.

SIP is a signaling protocol used to establish, modify and terminate multimedia communication sessions.

In video conferencing, it normally handles call setup and session control rather than carrying the actual video media.

Yes.

SIP can establish sessions that contain video by negotiating multimedia parameters between endpoints.

The video itself is usually transported using RTP or SRTP rather than inside SIP signaling.

Yes, but the connection model differs.

Zoom uses an H.323/SIP Room Connector, Microsoft Teams typically uses a supported Cloud Video Interop provider, and Webex supports standards-based SIP and H.323 video systems joining meetings.

SIP is widely used for standards-based IP voice and video signaling, while H.323 is an older protocol family that remains common in installed enterprise room infrastructure.

Organizations with mixed conference-room equipment may need support for both.

Yes.

A conferencing system with native SIP capabilities can run on customer-operated infrastructure and allow SIP endpoints to register or connect without relying on a public conferencing cloud for the core meeting environment.

Native SIP means that the conferencing platform itself handles SIP signaling or endpoint registration.

A SIP connector acts as an intermediary between the SIP endpoint and another meeting environment.

Native SIP is more relevant when SIP is part of the organization’s internal communication infrastructure, while connectors are often practical when existing rooms only need access to a cloud meeting service.

SIP video conferencing remains useful because organizations still need standards-based conference rooms, PBXs and modern meeting platforms to work together.

The important distinction is whether SIP is handled directly by the conferencing platform or through a gateway or interoperability service.

Native SIP is most relevant when SIP is part of the organization’s own communication infrastructure. Connector-based interoperability is often simpler when existing room systems only need access to a cloud meeting platform.
